Product Details
Place of Origin: Shanxi, China
Brand Name: BAO STEEL, WISCO, TISCO
Certification: MTC, SGS, ISO
Model Number: DX51D, DX52D, DC51D, DC52D, SGCC
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Price: 0.78 USD/KG
Packaging Details: Seaworthy export package / According to customer's requests
Delivery Time: 7-15 Working days
Payment Terms: T/T, L/C
Supply Ability: 1000 Tons per month
Standard: |
ASTM, JIS, EN |
Grade: |
DX51D, DX52D, DC51D, DC52D, SGCC |
Thickness: |
0.4mm-2.0mm |
Length: |
1000mm-12000mm |
Width: |
600mm-1250mm |
Zinc Coating: |
40g/m²-275g/m² |
Spangle: |
Big, Regular, Mini, Zero Spangle |
Surface Treatment: |
Galvanized Coated, Chromated And Oiled |
Standard: |
ASTM, JIS, EN |
Grade: |
DX51D, DX52D, DC51D, DC52D, SGCC |
Thickness: |
0.4mm-2.0mm |
Length: |
1000mm-12000mm |
Width: |
600mm-1250mm |
Zinc Coating: |
40g/m²-275g/m² |
Spangle: |
Big, Regular, Mini, Zero Spangle |
Surface Treatment: |
Galvanized Coated, Chromated And Oiled |
Description

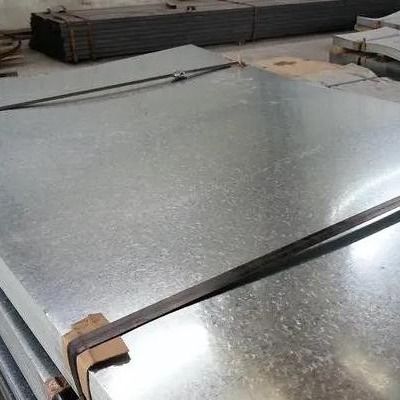

DX51D+Z80 Galvanized Steel Plate ZINC80G 1.0mm*1220mm Regular Spangle
Regular spangle refers to a specific surface appearance or pattern that can be observed on galvanized steel or other metal surfaces after the hot-dip galvanization process. Here are some key characteristics of regular spangle:
1. Crystal Pattern: Regular spangle appears as a pattern of uniformly shaped and evenly distributed crystals on the surface of the galvanized steel. These crystals are typically zinc crystals that have formed during the solidification of the molten zinc coating.
2. Size and Visibility: Regular spangle tends to have larger crystal formations compared to other spangle types. The crystals are distinct and visible to the naked eye, giving the surface a textured or grainy appearance.
3. Metallic Shine: The presence of regular spangle on a galvanized surface contributes to a shiny, metallic look. The reflected light off the spangle crystals enhances the overall aesthetic appeal of the material.
4. Aesthetics and Applications: Regular spangle is often preferred for applications where a more traditional or industrial look is desired. It is commonly used in architectural and construction applications, such as roofing, siding, facades, and decorative elements.
Parameters
| Thickness | 0.4mm-2.0mm |
| Width | 600mm-1250mm |
| Zinc Coating | 40g/m²-275g/m² |
| Painting | Top paint: 15-25μm, Back paint: 5-7μm |
| Place of Orgin | Shanxi, China |
| Standard | ASTM, JIS, DX51D, SGCC |
| Quality Control | MTC, SGS, ISO |
| Spangle | Big Spangle, Regular Spangle, Mini Spangle, Zero Spangle |
| Surface Treatment | Galvanized, Clean, Blasting and Painting |
| Tolerance | Thickness: ±0.01mm, Width: ±2mm |
Main Features
Galvanized steel plates offer several benefits due to the protective zinc coating applied to the surface. Here are some key advantages of galvanized steel plates:
1. The zinc coating on galvanized steel plates provides excellent corrosion resistance. It acts as a barrier, preventing corrosive substances such as moisture, oxygen, and chemicals from coming into direct contact with the underlying steel. This helps to extend the lifespan of the steel and protect it from rust and corrosion.
2. Galvanized steel plates require minimal maintenance. The zinc coating provides a self-healing property, where if the coating is scratched or damaged, the zinc will sacrificially corrode to protect the underlying steel. This reduces the need for frequent inspections or touch-ups. Regular cleaning to remove dirt or debris is typically sufficient to maintain the appearance and performance of galvanized steel plates.
3. Galvanized steel plates are environmentally friendly. The zinc coating used in the galvanization process is 100% recyclable, reducing the environmental impact. Additionally, the extended lifespan of galvanized steel plates means fewer replacements, reducing waste generation, etc.
Application
1. Regular spangle galvanized steel is commonly used in the production of appliances such as refrigerators, washing machines, and air conditioning units. Its aesthetic appeal and corrosion resistance contribute to the longevity and visual appeal of these products.
2. Regular spangle galvanized steel is found in various industrial applications, including HVAC systems, ductwork, industrial shelving, and storage racks. Its strength, corrosion resistance, and ease of fabrication make it a versatile material in industrial settings.
3. Regular spangle galvanized steel is utilized in transportation infrastructure, including highway guardrails, signposts, and bridge components. Its corrosion resistance and durability are critical for ensuring the safety and longevity of these structures, etc.
FAQ
Q1: Can regular spangle galvanized steel be painted?
A1: Yes, regular spangle galvanized steel can be painted. However, it is important to properly prepare the surface by removing any contaminants and applying a suitable primer before painting. This ensures good adhesion and long-lasting paint performance.
Q2: What are the benefits of regular spangle galvanized steel?
A2: Regular spangle galvanized steel offers the same advantages as other galvanized steel, including excellent corrosion resistance, durability, and low maintenance requirements. Additionally, the regular spangle pattern provides an appealing aesthetic appearance.
Q3: Can regular spangle galvanized steel be formed or shaped easily?
A3: Yes, regular spangle galvanized steel can be formed and shaped using common fabrication techniques such as bending, roll forming, and stamping. The zinc coating provides some additional ductility and protection during forming processes.
