Product Details
Place of Origin: Shanxi, China
Brand Name: BAO STEEL, WISCO, TISCO
Certification: ISO, CE, BV, MTC
Model Number: DX52D
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Price: 0.63 USD/KG
Packaging Details: Seaworthy export package
Delivery Time: 7-15 Working days
Payment Terms: T/T, L/C
Supply Ability: 1000 MT per month
Grade: |
DX52D+Z |
Standard: |
ASTM, JIS, EN, DIN |
Thickness: |
0.4mm-2.0mm |
Length: |
1000mm-12000mm |
Width: |
600mm-1250mm |
Zinc Coating: |
40g/m²-275g/m² |
Surface Treatment: |
Oiling/Anti-fingerprint Coating/Chromate Conversion Coating |
Spangle: |
Big/Regular/Mini/Zero Spangle |
Grade: |
DX52D+Z |
Standard: |
ASTM, JIS, EN, DIN |
Thickness: |
0.4mm-2.0mm |
Length: |
1000mm-12000mm |
Width: |
600mm-1250mm |
Zinc Coating: |
40g/m²-275g/m² |
Surface Treatment: |
Oiling/Anti-fingerprint Coating/Chromate Conversion Coating |
Spangle: |
Big/Regular/Mini/Zero Spangle |
Description

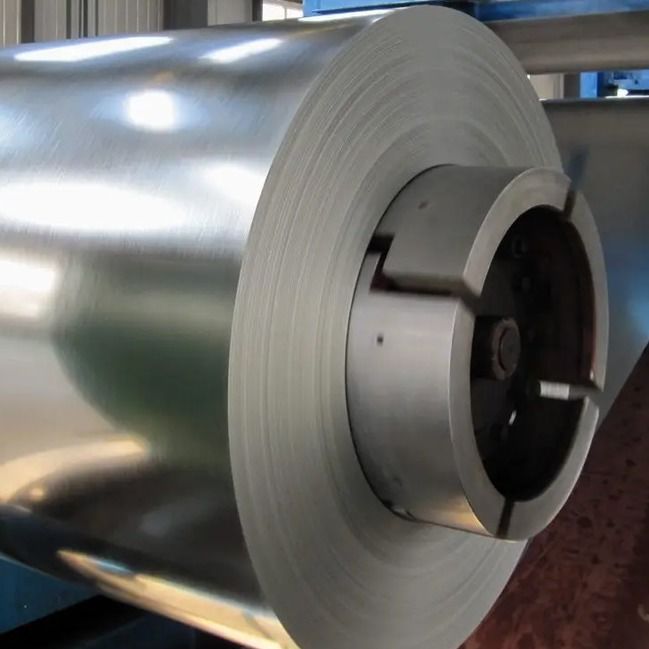

EN 10346 DX52D Galvanized Steel Coil 0.22mm-1.30mm Surface Slightly Oiled
1. Chemical Composition: DX52D galvanized steel coil typically contains low carbon content and alloying elements, such as manganese (Mn), silicon (Si), and phosphorus (P), to enhance its mechanical properties and formability.
2. Coating Weight: The coating weight or zinc coating mass of DX52D galvanized steel coil is specified in grams per square meter (g/m²). It indicates the amount of zinc applied to the surface and determines the level of corrosion protection. The coating weight can vary based on the application requirements.
3. Mechanical Properties: DX52D galvanized steel coil has specific mechanical properties, including the yield strength, tensile strength, and elongation. These properties ensure the strength and ductility of the material, making it suitable for various forming and structural applications.
Parameters
| Thickness | 0.4mm-2.0mm |
| Width | 600mm-1250mm |
| Zinc Coating | 40g/m²-275g/m² |
| Painting | Top paint: 15-25μm, Back paint: 5-7μm |
| Place of Origin | Shanxi, China |
| Standard | ASTM, JIS, DIN, EN |
| Surface Treatment | Galvanized Coated, Chromated and Oiled |
| Quality Control | MTC, SGS, ISO |
| Spangle | Big spangle, Regular spangle, Mini spangle, Zero spangle |
| Price Term | FOB, CIF |
Application
Galvanized steel coils are extensively used in the construction industry for roofing, wall cladding, structural components, and reinforcements. They provide long-lasting protection against corrosion, making them ideal for buildings, bridges, fences, and other infrastructure projects.
DX52D galvanized steel coil is widely used in the construction industry for roofing, wall cladding, structural components, and framing. Its corrosion resistance and durability make it suitable for outdoor applications where protection against weathering and rust is essential.
Galvanized steel coils, including DX52D, are extensively used in the automotive industry for manufacturing body panels, chassis components, and structural reinforcements. The galvanized coating provides corrosion protection, extending the lifespan of automotive parts.
DX52D galvanized steel coil is also utilized in the production of household appliances, such as refrigerators, washing machines, ovens, and air conditioning units. The corrosion resistance and aesthetic appeal of galvanized steel make it a preferred choice for these applications.
Chemical Composition
According to EN 10346:2015
| Designation |
Chemical composition % by mass max. |
|||||||
| Steel grade | ||||||||
| Steel name | Steel number | Symbols for the types of avaiable coatings | ||||||
| C | Si | Mn | P | S | Ti | |||
| DX51D | 1.0917 | +Z, +ZF, +ZA, +ZM, +AZ, +AS |
0.18
0.12 |
0.50 |
1.20
0.60 |
0.12
0.10 |
0.045 | 0.30 |
| DX52D | 1.0918 | +Z, +ZF, +ZA, +ZM, +AZ, +AS | ||||||
| DX53D | 1.0951 | +Z, +ZF, +ZA, +ZM, +AZ, +AS | ||||||
| DX54D | 1.0952 | +Z, +ZF, +ZA, +ZM, +AZ, +AS | ||||||
| DX55D | 1.0962 | +AS | ||||||
| DX56D | 1.0963 | +Z, +ZF, +ZA, +ZM, +AZ, +AS | ||||||
| DX57D | 1.0853 | +Z, +ZF, +ZA, +ZM, +AS | ||||||
FAQ
Q1: What is the Brand Name of Galvanized Steel Coil?
A1: The Brand Name is TISCO.
Q2: How long is the delivery time?
A2: Generally it is within 10 days. If the goods is not in stock , according to the quantity it is within 30 days.
Q3: How can galvanized steel coil be maintained?
A3: Galvanized steel coil requires minimal maintenance. Regular inspection for any signs of corrosion or damage is recommended, and any defects should be repaired promptly using appropriate methods, such as zinc-rich paint or epoxy coatings.
